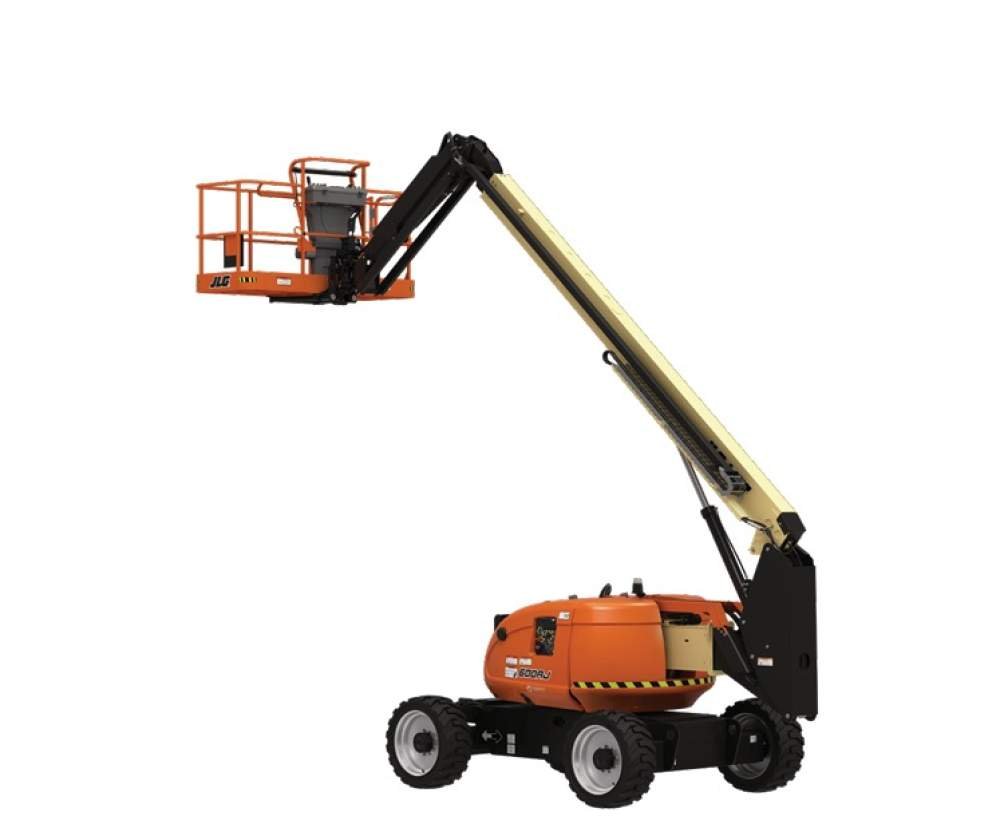

JLG 600AJ ARTICULATING BOOM FOR RENT

Standard Specifications

Performance

• Platform Height: 60 ft 7 in (18.47 m)

• Horizontal Outreach: 39 ft 9 in (12.1 m)

• Up-and-Over Height: 26 ft 7 in (8.1 m)

• Swing: 360° continuous

• Platform Capacity: 500 lb (227 kg)

• Platform Rotator: 180° hydraulic

• Jib Articulation Range: 130° (+70°, –60°)

• Machine Weight: 22,691 lb (10,292 kg)*

• Maximum Ground Bearing Pressure: 75 psi (5.5 kg/cm²)

• Drive Speed: 4.25 mph (6.8 km/h)

• Gradeability: 30% (2WD) / 45% (4WD)

• Tilt Cut-Out: 4°

• Axle Oscillation: 8 in (20 cm)

• Turning Radius (2WS) – Inside: 10 ft 11 in (3.33 m)

• Turning Radius (2WS) – Outside: 17 ft 8 in (5.38 m)

• Turning Radius (4WS) – Inside: 4 ft 7 in (1.41 m)

• Turning Radius (4WS) – Outside: 9 ft 7 in (2.92 m)

Engine Options

• Dual Fuel: Ford MSG425, 84 hp (62 kW)

• Diesel: Deutz D2.9L4 Tier 4 Final, 48.8 hp (36.4 kW)

• Fuel Tank Capacity: 30 gal (113.6 L)

Tires

Standard:

• Foam-filled, IN355/55D-625

Optional:

• Foam-filled, non-marking, IN355/55D-625

• Foam-filled turf & sand, 41 x 18LL x 22.5

Hydraulic System

• System Capacity: 30.6 gal (115.8 L)

• Auxiliary Power: 12V DC

Standard Features

• 4° tilt alarm and indicator light

• 12V DC auxiliary power

• 110V AC receptacle in platform

• All-motion alarm

• Center storage tray

• ClearSky Smart Fleet™ hardware (CS550)

• Control ADE® system

• Glow plugs (diesel engines)

• Gull-wing engine hood

• Horn

• Hourmeter

• LED motion/amber beacon (CS550)

• Lifting/tie-down lugs

• Load-sensing system

• Oscillating axle

• Platform console machine status light panel**

• Proportional controls

• Rapid-replaceable platform with self-closing gate

• SkyGuard SkyLine™

• Swing-out engine tray
